Bore Lifting Clamps
Bore Lifting Clamps
Available Sizes: 200-300mm, 300-400mm, 400-450mm, 700-800mm
Product Description

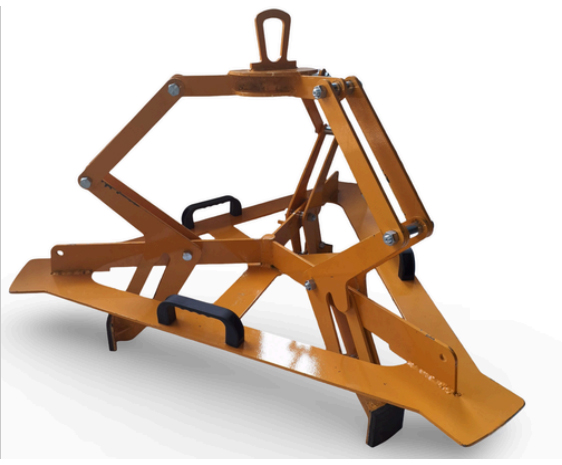

The Bore Lifting Clamp, also known as a Tiger Clamp, holds a firm grip on the bore (ID - Internal Diameter) of the wheel while handling it at the dressing stage and packing stage.
Lifting from the ID is used in cases where holding the wheel from the outer diameter (OD) could risk damaging it, making the clamp suited for circular objects that require ID-based lifting.
This grip allows the wheel to be lifted with ease, with lifting capacity depending on the clamp size used.
Available for bore sizes ranging from 200mm to 800mm, in size ranges of 200-300mm, 300-400mm, 400-450mm, and 700-800mm.
Roll wheels, snagging wheels, and ball wheel grinding wheels, being heavy in size, are common applications for this clamp.
Product Specifications
| Specification | Details |
|---|---|
| Product | Bore Lifting Clamp (Tiger Clamp) |
| Application | Wheel Handling at Dressing & Packing Stage |
| Bore Size Range | 200mm - 800mm |
| Size Options | 200-300mm, 300-400mm, 400-450mm, 700-800mm |
| Lifting Capacity | 50 kg - 300 kg (approx., based on clamp size) |
Applications
Used for lifting and handling grinding wheels at the dressing and packing stage, gripping the internal diameter (ID) of the wheel securely for safe handling. This ID lifting approach is preferred when lifting from the outer diameter (OD) risks damaging the wheel. Particularly suited for heavy wheels.
FAQs
It is used to hold and lift grinding wheels
by their bore (ID – Internal Diameter)
during the dressing and packing stage.
Lifting from the ID is used when holding the
wheel from the outer diameter could damage
it, making ID clamping the safer option for
such wheels.
Lifting capacity generally ranges from
50 kg to 300 kg, depending on the clamp size.
Bore sizes ranging from 200mm to 800mm,
available in ranges of 200-300mm,
300-400mm, 400-450mm, and 700-800mm.
Heavy wheels such as roll wheels, snagging
wheels, and ball wheel grinding wheels.
