DC Setter Plates
DC Setter Plates
Available Sizes : 4", 5", 6", 7", 9" (thickness 6mm-8mm as per requirement)
Product Description

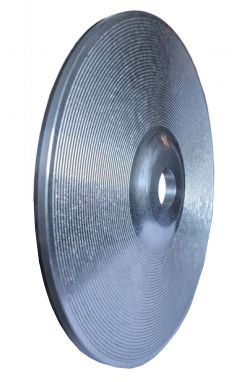

The DC Setter Plate, also known as a setter or bat, is used to hold and support DC grinding wheels during the baking process in the oven.
Made from aluminium alloys, it is produced to the required profile to match the DC wheel shape, with customers able to supply samples to get setters made to their exact specification.
Available in sizes 4", 5", 6", 7", and 9", with thickness ranging from 6mm to 8mm as per requirement.
The face is serrated for better heat circulation during baking, where grinding wheels are stood on the setter plate inside the oven at approximately 200oC.
Product Specifications
| Specification | Details |
|---|---|
| Product | DC Setter Plate |
| Also known as | Setter, Bat |
| Application | Baking of DC Grinding Wheels (Oven, ~200o>C) |
| Material | Aluminium Alloy |
| Sizes Available | 4", 5", 6", 7", 9" |
| Thickness | 6mm - 8mm (as per requirement) |
| Profile | Customizable as per customer drawings or samples |
| Customization | Available |
Applications
Used inside the oven structure during the baking of grinding wheels, where the wheel stands on the setter plate at a baking temperature of approximately 200oC.
The serrated face helps in even heat circulation across the wheel during this process.
FAQs
It is used to hold and support DC grinding
wheels during the baking process inside the
oven.
It is made from aluminium alloys.
Standard sizes are 4", 5", 6", 7", and 9",
with thickness from 6mm to 8mm as per
requirement.
Yes, customers can provide samples and get
setter plates made accordingly.
