Clamping Stands
Clamping Stands
Available Sizes : 16mm, 22mm, 25mm (length 300mm-400mm as per customer design)
Product Description

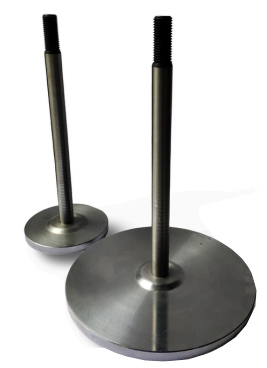

The Clamping Stand is used to hold DC or cutting wheels during the baking process in the oven at approximately 200oC.
Wheels are secured on the stand using a lock nut and spring arrangement, allowing multiple wheels to be stacked and baked together, with approximately 25 to 30 pieces accommodated in a single stack.
The clamping rod is hardened and ground, built to withstand the wear involved in repeated use.
Available in rod sizes 16mm, 22mm, and 25mm, with length ranging from 300mm to 400mm as per customer design. Clamping rods for chopsaw or large cut-off wheels can also be made as per requirement.
Product Specifications
| Specification | Details |
|---|---|
| Product | Clamping Stand |
| Application | Baking of DC / Cutting Wheels (Oven, ~200o>C) |
| Rod Sizes | 16mm, 22mm, 25mm |
| Length | 300mm - 400mm (as per customer design) |
| Hardness | Medium (hardened & ground, wear-resistant) |
| Stacking Capacity | Approx. 25 - 30 pieces per stack |
| Clamping Mechanism | Lock nut and spring arrangement |
| Customization | Available (including chopsaw / large cut-off rods) |
Applications
Used inside the oven during the baking of DC and cutting wheels, holding the wheels securely in a stacked arrangement through a lock nut and spring mechanism at a baking temperature of approximately 200oC.
FAQs
It is used to hold DC or cutting wheels in
place during the baking process inside the
oven.
Rod sizes of 16mm, 22mm, and 25mm, with
length from 300mm to 400mm as per customer
design.
Approximately 25 to 30 pieces can be stacked
in a single stack.
Wheels are secured using a lock nut and spring
arrangement.
Yes, clamping rods for chopsaw or large
cut-off wheels can be made as per
requirement.
