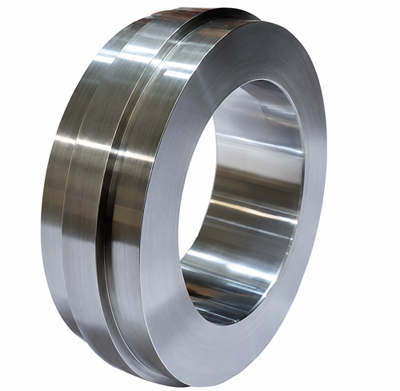

Grinding Wheel Mould Rings
Grinding Wheel Mould Rings
Available Sizes : 4", 5", 6", 7", 9" (custom sizes on request)
Product Description
The Grinding Wheel Mould Ring is used in the manufacturing of DC grinding wheels, cutting wheels, and chopsaw wheels, forming the outer ring during the pressing stage to define the wheel's diameter and shape. It plays a key role in ensuring the wheel takes its correct form before moving to the curing and finishing stages. Material can be customized to match the existing process or to achieve the desired life of the product.
Available in sizes 4" to 9", with custom sizes made available based on customer drawings or specifications. Die rings are also available for multi-cavity, China-made press stations, in addition to standard single-cavity setups.
Product Specifications
| Specification | Details |
|---|---|
| Product | Grinding Wheel Mould Ring |
| Application | DC Grinding Wheel, Cutting Wheel, Chopsaw Wheel |
| Material | As per customer requirement |
| Sizes Available | 4", 5", 6", 7", 9" |
| Hardness | Up to 55 HRC |
| Press Compatibility | Standard & multi-cavity press stations |
| Customization | Available |
Applications
Used as the outer forming ring in the pressing stage of grinding, cutting, and chopsaw wheel manufacturing, shaping and sizing the wheel before curing and finishing. Common uses include:
- DC (Depressed Centre) grinding wheels
- Cutting wheels
- Chopsaw wheels
FAQs
Standard sizes are 4", 5", 6", 7", and 9",
with custom sizes available based on drawings or specifications.
Yes, material can be customized to match the existing process
or to achieve the desired life of the product.
Yes, die rings are available for multi-cavity, China-made press
stations, in addition to standard single-cavity setups.
DC grinding wheels, cutting wheels, and chopsaw wheels.
Yes, sizes and specifications outside the standard range are
manufactured on request.
