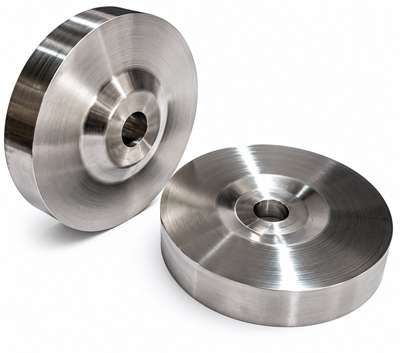

Punch (Die) For Dc Wheel
Punch (Die) For Dc Wheel
Available Sizes : 4", 5", 7", 9" (custom sizes on request)
Product Description
The Punch (Die) for DC Wheel is used in the pressing stage of DC (Depressed Centre) grinding wheel manufacturing, working along with the mould ring to compress and shape the wheel to its required thickness and profile.
Available in sizes 4", 5", 7", and 9", the punch is made in the material best suited to the customer's pressing requirement. Profile can be customized as per customer drawings, and custom sizes are made available on request.
Product Specifications
| Specification | Details |
|---|---|
| Product | Punch (Die) for DC Wheel |
| Application | DC Wheel |
| Material | As per customer requirement |
| Sizes Available | 4", 5", 7", 9" |
| Hardness | Up to 55 HRC |
| Profile | Customizable as per customer drawings or samples |
| Customization | Available |
Applications
Used during the pressing stage of DC grinding wheel manufacturing, working in conjunction with the mould ring to form the wheel's depressed centre profile before curing and finishing.
Common use:
- Depressed Center (DC) Grinding Wheel Manufacturing
FAQs
Standard sizes are 4", 5", 7", and 9", with
custom sizes available based on drawings or
specifications.
Yes, Material can be customized to match the
existing process or to achieve the desired
hardness of the product.
Yes, the punch profile can be customized as
per customer drawings.
It is used along with the mould ring to shape
DC (Depressed Centre) grinding wheels during
pressing.
Yes, sizes and specifications outside the
standard range are manufactured on request.
