Ring Plug Gauges
Ring Plug Gauges
Available Sizes: 203mm, 304.10mm, 354mm, 400mm bore
Product Description

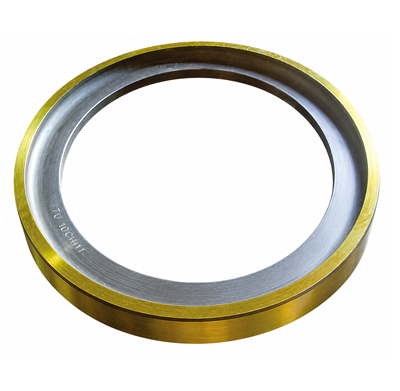

Ring Plug Gauges are used for checking large bore sizes, available for 203mm, 304.10mm, 354mm, and 400mm bores. As the name suggests, these are plug-style gauges built specifically for larger bore diameters, where standard gauge sizes do not apply.
They are supplied in GO and NO GO configurations, allowing a bore to be checked against both the upper and lower acceptable limits in a single verification step.
Because these gauges are used for larger bores, hardness is adjusted for size and ranges from 25-50 HRC depending on the gauge diameter, with larger gauges generally carrying a lower hardness value.
Since accuracy is the primary requirement for a gauge of this kind, manufacturing them involves closer control at every stage, which is reflected in a comparatively higher cost.
These gauges are also produced in low quantities, as demand for large-bore verification tools is inherently limited compared to standard-size gauges.
Product Specifications
| Specification | Details |
|---|---|
| Product | Ring Plug Gauges |
| Application | Bore Verification (Large Sizes) |
| Bore Sizes | 203mm, 304.10mm, 354mm, 400mm |
| Custom Size | Available |
| Gauge Type | GO / NO GO |
| Hardness | 25 - 50 HRC |
Applications
Used to verify large bore sizes, supplied in GO and NO GO configurations to check whether a bore falls within the acceptable size range. Suited for applications requiring large-diameter bore checking where accuracy is critical.
FAQs
It is used to verify large bore sizes
using GO and NO GO configurations.
Standard bore sizes are 203mm, 304.10mm,
354mm, and 400mm.
They are the two gauge limits used to
check whether a bore size falls within
the acceptable range.
Yes, custom bore sizes are available
on request.
