DC Wheel Mould Set (Ring with Top & Bottom Punch)
DC Wheel Mould Set (Ring with Top & Bottom Punch)
Available Sizes 4", 5", 6", 7", 9" (Custom sizes on request)
Product Description

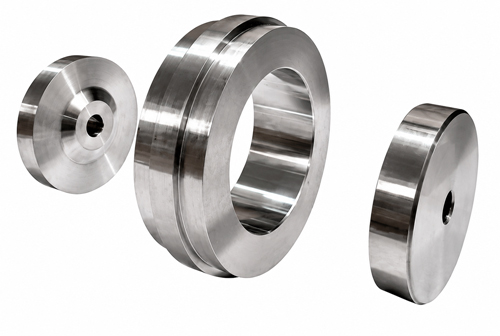

The DC Wheel Mould Set consists of a mould ring along with a top and bottom punch, used together in the pressing stage of DC (Depressed Centre) grinding wheel manufacturing. The ring forms the outer diameter and shape of the wheel, while the top and bottom punches work in coordination with the ring to compress the wheel to its required thickness and profile.
Punch profile can be customized as per customer drawings. Material can be customized to match the existing process or to achieve the desired hardness of the product.
Available in sizes 4", 5", 7", and 9" for the punch set, and 4" to 9" for the mould ring, with custom sizes made available on request.
Product Specifications
| Specification | Details |
|---|---|
| Product | DC Wheel Mould Set (Ring + Top & Bottom Punch) |
| Set Includes | Mould Ring, Top Punch, Bottom Punch |
| Application | DC (Depressed Centre) Grinding Wheel |
| Material | As per customer requirement |
| Ring Sizes | 4", 5", 6", 7", 9" |
| Punch Sizes | 4", 5", 6", 7", 9" |
| Hardness | Up to 55 HRC |
| Profile | Customizable as per customer drawings (Punch) |
| Press Compatibility | Standard & multi-cavity (China-made) press stations |
| Customization | Available |
Applications
Used as a complete set in the pressing stage of DC grinding wheel manufacturing, where the mould ring and punches work together to shape and size the wheel before curing and finishing. Compatible with standard single-cavity setups as well as multi-cavity, China-made press stations. Common use:
- DC (Depressed Centre) Wheel manufacturing
FAQs
It includes a mould ring, a top punch, and a
bottom punch, used together during the
pressing stage.
Ring sizes of 4", 5", 6", 7", and 9", and
punch sizes of 4", 5", 7", and 9", with custom
sizes available on request.
Yes, material can be customized to match the
existing process or to achieve the desired
life of the product.
Yes, the punch profile can be customized as
per customer drawings.
Yes, the set is compatible with standard
single-cavity setups as well as multi-cavity,
China-made press stations.
Yes, sizes and specifications outside the
standard range are manufactured on request.
