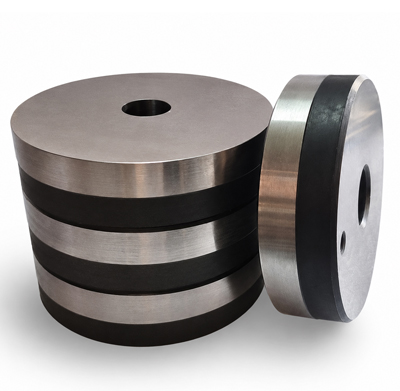

Punch (Die) for Cutting Wheel
Punch (Die) for Cutting Wheel
Available Sizes : 4", 5", 7", 9", 14", 16" (custom sizes on request)
Product Description
The Punch (Die) for Cutting Wheel is used in the pressing stage of cutting wheel manufacturing, working along with the mould ring to compress and shape the wheel to its required thickness and profile.
Profile can be customized as per customer drawings. Material can be customized to match the existing process or to achieve the desired life of the product.
Available in sizes 4", 5", 7", 9", 14", and 16", with custom sizes made available on request.
Product Specifications
| Specification | Details |
|---|---|
| Product | Punch (Die) for Cutting Wheel |
| Application | Cutting Wheel |
| Material | As per customer requirement |
| Sizes Available | 4", 5", 7", 9", 14", 16" |
| Hardness | Up to 55 HRC |
| Customization | Available |
Applications
Used during the pressing stage of cutting wheel manufacturing, working in conjunction with the mould ring to shape and size the wheel before curing and finishing.
Common use:
- Cutting Wheel Manufacturing
FAQs
Standard sizes are 4", 5", 7", 9", 14",
and 16", with custom sizes available based
on drawings or specifications.
Yes, material can be customized to match the
existing process or to achieve the desired
hardness of the product.
It is used along with the mould ring to shape
cutting wheels during pressing.
Yes, sizes and specifications outside the
standard range are manufactured on request.
